SQL Server 2022 : Check constraints and unique constraints

We could set up the rules or constraints when we create a new table, like we don't want the input too short or any unwanted characters, so 'check constraints' could help us on it.

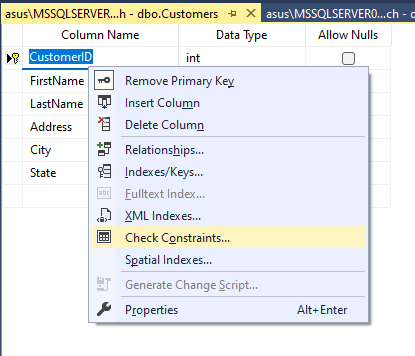

I'm using the Customers table again and go to 'Design' window. Click the 'Manage Check Constraints' icon or select any item in the Column Name and right click, then select 'Check Constraints' from the menu.





Then I have this window :

I edit the constraints in this window: use len() function to make the content of LastName column must be greater than or equal to 2 bytes. Then rename the '(Name)' of Identity, also add 'Description' and press 'Add' to save the editing.

Go back to the Customers table, select 'Edit Top 200 Rows'.

Go to the last row of the Customers table, then enter the new content to it.
Input 'Roger' as FirstName, 'W' as LastName. Then skip the Address, City and State. Press enter, it returns the pop-up window with the error message that the new row 4 was not committed because it doesn't satisfy the constraint 'CK_Customers_LastNameLenghth' .  So the constraint's setup is successful. The press Ok and Esc, the violated content will be erased by the system.

Go to Object Explorer, check the dbo.Customers table, CK_Customers_LastNameLength is under the Constrains folder.
Also, for dbo.Products, we can see DF_Products_Category and DF_Products_TimeStamps as Constraints.



Now, what if we want the name of product is unique, how to set the constraints?
Right click the dbo.Products, select 'Design'. But you can't find 'unique constraints' option from top of the bar or from the right click menu. SQL server uses index to achieve this goal.

Click 'Add' button to add a new index.

SQL server creates the default name as 'IX_Products'. Then click the three dots on the right of the ProductID(ACS).


We arrives at the 'Index Columns' window.


Change the Column Name into 'Name', and leave the Sort Order as 'Ascending', then click ok.



Go back to the Indexes/Keys window, we can see the Columns has been updated as 'Name(ASC)'.

Now we set 'Yes' to Is Unique which will constrain the input of the name. No duplicated value is allowed. And update the [Name] of Identity as 'UX_Products_Name' and close.


Go back to the Object Explorer, check the Indexes folder of dbo.Products, it shows as ' UX_Products_Name(Unique, Non-Clustered)'.


Let's test if the setting works well. Right click dbo.products, and select 'Edit Top 200 Rows'. And go down to the bottom of the table.


Input 'Blueprints' as Category, 'BP112' as ProductID, 'Cat Robot Blueprint' as Name. Also fill up the rest columns and press enter. But the system returns the error message said that 'Cat Robot Blueprint' is duplicated.


Press OK and update the name column as 'Large Cat Robot Blueprint'. Press enter, the new row is updated properly with the time stamp.



Well, that is how SQL server create the unique constraints through index.

Notes: I use the sample database from Microsoft SQL Server 2022 Essential Training With Adam Wilbert.
